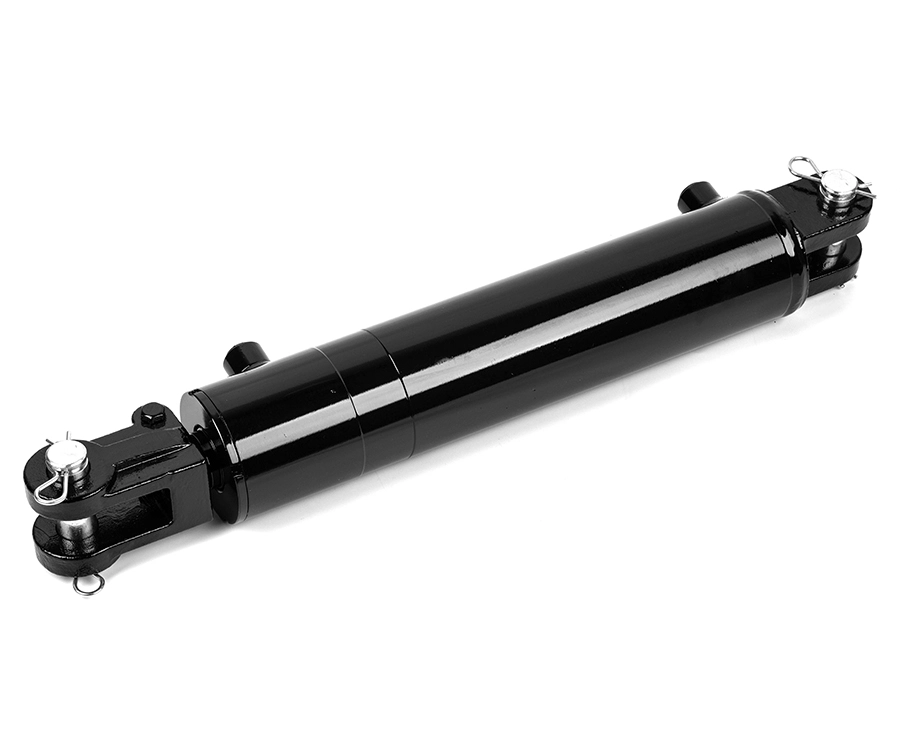

ACL Adjustable Welded Clevis Hydraulic Cylinder

The ACL Clevis Welded Hydraulic Cylinder is a high-quality and durable hydraulic cylinder designed for various industrial applications. It offers reliable performance and efficient operation for optimal productivity.

Characteristics of ACL Adjustable Welded Clevis Hydraulic Cylinder

  • 3000PSI Pressure, hydraulic cylinder welded double acting applications
  • 100% hydraulic-pressure tested
  • Heavy-duty welded construction
  • ROD, high-tensile steel, hard chrome plated, induction-hardened
  • Honed steel tube and precision-finished
  • Ductile iron material for Piston and Gland
  • All seals are manufactured to US specification
  • SAE ports available

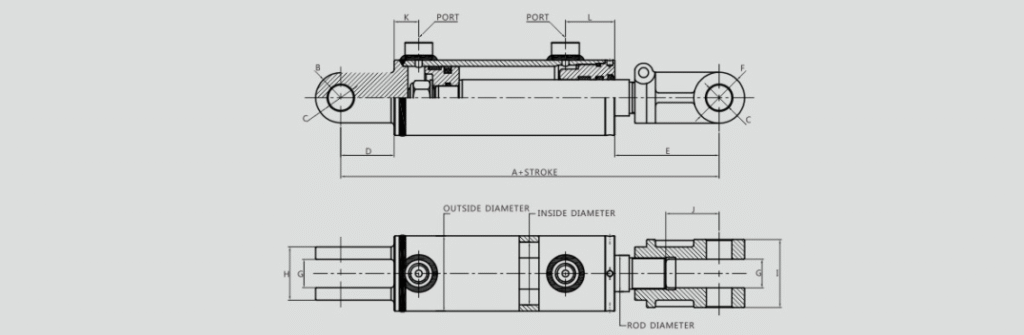

ACL Adjustable Welded Clevis Hydraulic Cylinder Diagram

acl adjustable welded clevis hydraulic cylinder

Specification of ACL Adjustable Welded Clevis Hydraulic Cylinder

Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TACL30-1504 1″ 1.5″x4″ 14-1/4″ 18-1/4″ SAE#6 3/4″ 10
TACL30-1506 1.5″x6″ 16-1/4″ 22-1/4″ 11
TACL30-1508 1.5″x8″ 18-1/4″ 26-1/4″ 12
TACL30-1508-ASAE 1.5″x8″ 20-1/4″ 28-1/4″ 13
TACL30-1510 1.5″x10″ 20-1/4″ 30-1/4″ 13
TACL30-1512 1.5″x12″ 22-1/4″ 34-1/4″ 15
TACL30-1514 1.5″x14″ 24-1/4″ 38-1/4″ 16
TACL30-1516 1.5″x16″ 26-1/4″ 42-1/4″ 17
TACL30-1518 1.5″x18″ 28-1/4″ 46-1/4″ 18
TACL30-1520 1.5″x20″ 30-1/4″ 50-1/4″ 20
TACL30-1524 1.5″x24″ 34-1/4″ 58-1/4″ 22
TACL30-1528 1.5″x28″ 38-1/4″ 66-1/4″ 25
TACL30-1530 1.5″x30″ 40-1/4″ 70-1/4″ 26
TACL30-1532 1.5″x32″ 42-1/4″ 74-1/4″ 27
TACL30-1534 1.5″x34″ 44-1/4″ 78-1/4″ 28
TACL30-1536 1.5″x36″ 46-1/4″ 82-1/4″ 29
TACL30-2004 1-1/8″ 2″x4″ 14-1/4″ 18-1/4″ SAE#8 1″ 16
TACL30-2006 2″x6″ 16-1/4″ 22-1/4″ 17
TACL30-2008 2″x8″ 18-1/4″ 26-1/4″ 19
TACL30-2008-ASAE 2″x8″ 20-1/4″ 28-1/4″ 20
TACL30-2010 2″x10″ 20-1/4″ 30-1/4″ 20
TACL30-2012 2″x12″ 22-1/4″ 34-1/4″ 22
TACL30-2014 2″x14″ 24-1/4″ 38-1/4″ 24
TACL30-2016 2″x16″ 26-1/4″ 42-1/4″ 25
TACL30-2018 2″x18″ 28-1/4″ 46-1/4″ 27
TACL30-2020 2″x20″ 30-1/4″ 50-1/4″ 28
TACL30-2024 2″x24″ 34-1/4″ 58-1/4″ 31
TACL30-2028 2″x28″ 38-1/4″ 66-1/4″ 35
TACL30-2030 2″x30″ 40-1/4″ 70-1/4″ 36
TACL30-2032 2″x32″ 42-1/4″ 74-1/4″ 38
TACL30-2034 2″x34″ 44-1/4″ 78-1/4″ 39
TACL30-2036 2″x36″ 46-1/4″ 82-1/4″ 41
TACL30-2504 1-1/4″ 2.5″x4″ 14-1/4″ 18-1/4″ SAE#8 1″ 19
TACL30-2506 2.5″x6″ 16-1/4″ 22-1/4″ 21
TACL30-2508 2.5″x8″ 18-1/4″ 26-1/4″ 23
TACL30-2508-ASAE 2.5″x8″ 20-1/4″ 28-1/4″ 23
TACL30-2510 2.5″x10″ 20-1/4″ 30-1/4″ 24
TACL30-2512 2.5″x12″ 22-1/4″ 34-1/4″ 26
TACL30-2514 2.5″x14″ 24-1/4″ 38-1/4″ 28
TACL30-2516 2.5″x16″ 26-1/4″ 42-1/4″ 30
TACL30-2518 2.5″x18″ 28-1/4″ 46-1/4″ 32
TACL30-2520 2.5″x20″ 30-1/4″ 50-1/4″ 34
TACL30-2524 2.5″x24″ 34-1/4″ 58-1/4″ 38
TACL30-2528 2.5″x28″ 38-1/4″ 66-1/4″ 42
TACL30-2530 2.5″x30″ 40-1/4″ 70-1/4″ 44
TACL30-2532 2.5″x32″ 42-1/4″ 74-1/4″ 46
TACL30-2534 2.5″x34″ 44-1/4″ 78-1/4″ 48
TACL30-2536 2.5″x36″ 46-1/4″ 82-1/4″ 49
TACL30-3004 1-1/2” 3″x4″ 14-1/4″ 18-1/4″ SAE#8 1″ 24
TACL30-3006 3″x6” 16-1/4″ 22-1/4″ 26
TACL30-3008 3″x8″ 18-1/4″ 26-1/4″ 29
TACL30-3008-ASAE 3″x8″ 20-1/4″ 28-1/4″ 29
TACL30-3010 3″x10″ 20-1/4″ 30-1/4″ 31
TACL30-3012 3″x12″ 22-1/4″ 34-1/4″ 34
TACL30-3014 3″x14″ 24-1/4″ 38-1/4″ 36
TACL30-3016 3″x16″ 26-1/4″ 42-1/4″ 39
TACL30-3018 3″x18″ 28-1/4″ 46-1/4″ 41
TACL30-3020 3″x20″ 30-1/4″ 50-1/4″ 43
TACL30-3024 3″x24″ 34-1/4″ 58-1/4″ 48
TACL30-3028 3″x28″ 38-1/4″ 66-1/4″ 53
TACL30-3030 3″x30″ 40-1/4″ 70-1/4″ 56
TACL30-3032 3″x32″ 42-1/4″ 74-1/4″ 58
TACL30-3034 3″x34″ 44-1/4″ 78-1/4″ 61
TACL30-3036 3″x36″ 46-1/4″ 82-1/4″ 63
TACL30-3504 1-3/4″ 3.5″x4″ 14-1/4″ 18-1/4″ SAE#8 1″ 29
TACL30-3506 3.5″x6″ 16-1/4″ 22-1/4″ 32
TACL30-3508 3.5″x8″ 18-1/4″ 26-1/4″ 35
TACL30-3508-ASAE 3.5″x8″ 20-1/4″ 28-1/4″ 36
TACL30-3510 3.5″x10″ 20-1/4″ 30-1/4″ 38
TACL30-3512 3.5″x12″ 22-1/4″ 34-1/4″ 41
TACL30-3514 3.5″x14″ 24-1/4″ 38-1/4″ 44
TACL30-3516 3.5″x16″ 26-1/4″ 42-1/4″ 47
TACL30-3518 3.5″x18″ 28-1/4″ 46-1/4″ 50
TACL30-3520 3.5″x20″ 30-1/4″ 50-1/4″ 53
TACL30-3524 3.5″x24″ 34-1/4″ 58-1/4″ 59
TACL30-3528 3.5″x28″ 38-1/4″ 66-1/4″ 65
TACL30-3530 3.5″x30″ 40-1/4″ 70-1/4″ 68
TACL30-3532 3.5″x32″ 42-1/4″ 74-1/4″ 71
TACL30-3534 3.5″x34″ 44-1/4″ 78-1/4″ 75
TACL30-3536 3.5″x36″ 46-1/4″ 82-1/4″ 78
TACL30-4004 2″ 4″x4″ 14-1/4″ 18-1/4″ SAE#8 1″ 35
TACL30-4006 4″x6″ 16-1/4″ 22-1/4″ 38
TACL30-4008 4″x8″ 18-1/4″ 26-1/4″ 42
TACL30-4008-ASAE 4″x8″ 20-1/4″ 28-1/4″ 43
TACL30-4010 4″x10″ 20-1/4″ 30-1/4″ 46
TACL30-4012 4″x12″ 22-1/4″ 34-1/4″ 49
TACL30-4014 4″x14″ 24-1/4″ 38-1/4″ 53
TACL30-4016 4″x16″ 26-1/4″ 42-1/4″ 57
TACL30-4018 4″x18″ 28-1/4″ 46-1/4″ 60
TACL30-4020 4″x20″ 30-1/4″ 50-1/4″ 64
TACL30-4024 4″x24″ 34-1/4″ 58-1/4″ 71
TACL30-4028 4″x28″ 38-1/4″ 66-1/4″ 79
TACL30-4030 4″x30″ 40-1/4″ 70-1/4″ 83
TACL30-4032 4″x32″ 42-1/4″ 74-1/4″ 86
TACL30-4034 4″x34″ 44-1/4″ 78-1/4″ 90
TACL30-4036 4″x36″ 46-1/4″ 82-1/4″ 94
PART NUMBER INSIDER DIAMETER OUTSIDER DIAMETER *A B C D *E F G H 1 J K L ROD THREAD ROD DIAMETER POR
TACL15- 1.50″ 2.00″ 10.25″ 1.50″ 0.76″ 1.62″ 4.50* 1.87, 0.87″ 1.75″ 2.00″ 1.62″ 0.93″ 1.87″ 0.875-14 UNF 1.00″ SAE#6
TACL20- 2.00″ 2.50″ 10.25″ 2.00″ 1.01″ 2.12″ 3.62″ 2.25″ 1.12″ 2.12″ 2.62″ 2.12″ 0.81″ 2.06″ 1.125-12 UNF 1.12″ SAE#8
TACL25- 2.50″ 3.00″ 10.25″ 2.00″ 1.01″ 2.12″ 3.62″ 2.25″ 1.12″ 2.12″ 2.62″ 2.12″ 0.81″ 2.06″ 1.125-12 UNF 1.25″ SAE#8
TACL30- 3.00″ 3.50″ 10.25″ 2.00″ 1.01″ 1.87″ 3.62″ 2.25″ 1.12″ 2.62″ 2.62″ 2.12″ 0.87″ 2.18″ 1.250-12 UNF 1.50″ SAE#8
TACL35- 3.50″ 4.00″ 10.25″ 2.00″ 1.01″ 1.87″ 3.62″ 2.50″ 1.12″ 2.62″ 2.75″ 2.12″ 0.93″ 2.18″ 1.500-12 UNF 1.75″ SAE#8
TACL40- 4.00″ 4.50″ 10.25″ 2.25″ 1.01″ 1.75″ 3.62″ 2.50″ 1.12″ 2.62″ 2.75″ 2.12″ 1.00″ 2.18″ 1.500-12 UNF 2.00″ SAE#8
*FOR 8.00″ STROKE :*A= 12.25″
*FOR 8.00″ STROKE :*E= 6.50″(1.50″ BORE) *E= 5.62″(2.00″ TO 4.00″ BORE)
SEAL TEMPERATURE RANGE: -30掳C/+100掳C(-22掳F/ + 212掳F)
SEAL MAXIMUM SPEED:3 FT/SEC
MAXIMUM RETRACTED WORKING PRESSURE 3000 PSI
DIMENSIONS A AND E ARE FOR REFERENCE ONLY AS CLEVIS IS ADJUSTABLE
