WCL Clevis Welded Hydraulic Cylinder

Product Categories

Leave us a message

The WCL Clevis Welded Hydraulic Cylinder is a heavy-duty and reliable cylinder designed for double-acting applications with a pressure rating of 3000 PSI. It features a durable welded construction, a high-tensile steel rod with chrome plating, and a honed steel tube for precision. The piston and gland are made of ductile iron, and all seals meet US specifications.

Characteristics of WCL Clevis Welded Hydraulic Cylinder

Operating pressure: 3000PSI
Construction: Heavy duty welded construction
Materials: Ductile iron for Piston; Hard chrome plated steel rod; Honed steel tube, precision finished.
Seals: Hallite
Ports: NPT,SAE,BSP available
Color: Standard gloss black paint; Custom color available upon request
Package: Wooden crate reinforced with iron frame

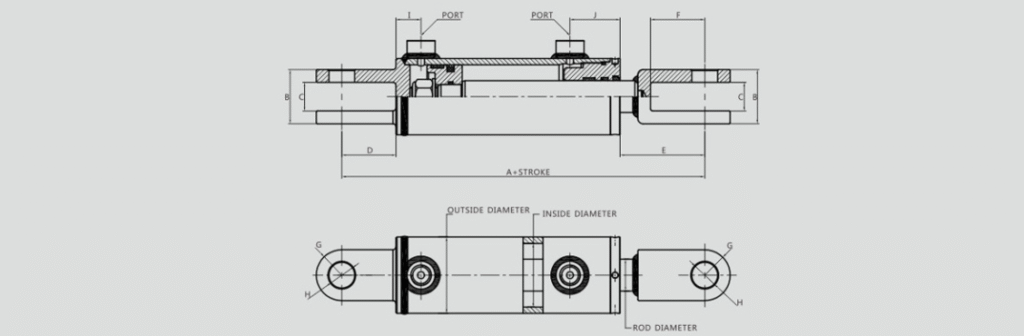

WCL Clevis Welded Hydraulic Cylinder Diagram

Specification of WCL Clevis Welded Hydraulic Cylinder

Part Number	Rod Dia.	Bore x Stroke	Dimensions		Port Size	Pin Size	Weight (lbs)
Part Number	Rod Dia.	Bore x Stroke	Retracted	Extended	Port Size	Pin Size	Weight (lbs)
TWCL30-1504	1″	1.5″x4″	14-1/4″	18-1/4″	3/8NPT	3/4″	8
TWCL30-1506		1.5″x6″	16-1/4″	22-1/4″			9
TWCL30-1508		1.5″x8″	18-1/4″	26-1/4″			11
TWCL30-1510		1.5″x10″	20-1/4″	30-1/4″			12
TWCL30-1512		1.5″x12″	22-1/4″	34-1/4″			13
TWCL30-1514		1.5″x14″	24-1/4″	38-1/4″			14
TWCL30-1516		1.5″x16″	26-1/4″	42-1/4″			15
TWCL30-1518		1.5″x18″	28-1/4″	46-1/4″			17
TWCL30-1520		1.5″x20″	30-1/4″	50-1/4″			18
TWCL30-1524		1.5″x24″	34-1/4″	58-1/4″			20
TWCL30-2004	1-1/4″	2″x4″	14-1/4″	18-1/4″	3/8NPT	1″	14
TWCL30-2006		2″x6″	16-1/4″	22-1/4″			16
TWCL30-2008		2″x8″	18-1/4″	26-1/4″			18
TWCL30-2010		2″x10″	20-1/4″	30-1/4″			19
TWCL30-2012		2″x12″	22-1/4″	34-1/4″			21
TWCL30-2014		2″x14″	24-1/4″	38-1/4″			23
TWCL30-2016		2″x16″	26-1/4″	42-1/4″			25
TWCL30-2018		2″x18″	28-1/4″	46-1/4″			26
TWCL30-2020		2″x20″	30-1/4″	50-1/4″			28
TWCL30-2024		2″x24″	34-1/4″	58-1/4″			31
TWCL30-2028		2″x28″	38-1/4″	66-1/4″			35
TWCL30-2030		2″x30″	40-1/4″	70-1/4″			36
TWCL30-2032		2″x32″	42-1/4″	74-1/4″			38
TWCL30-2034		2″x34″	44-1/4″	78-1/4″			40
TWCL30-2036		2″x36″	46-1/4″	82-1/4″			42
TWCL30-2040		2″x40″	50-1/4″	90-1/4″			45
TWCL30-2048		2″x48″	58-1/4″	106-1/4″			52
TWCL30-2504	1-1/2″	2.5″x4″	14-1/4″	18-1/4″	1/2NPT	1″	18
TWCL30-2506		2.5″x6″	16-1/4″	22-1/4″			20
TWCL30-2508		2.5″x8″	18-1/4″	26-1/4″			24
TWCL30-2510		2.5″x10″	20-1/4″	30-1/4″			25
TWCL30-2512		2.5″x12″	22-1/4″	34-1/4″			27
TWCL30-2514		2.5″x14″	24-1/4″	38-1/4″			29
TWCL30-2516		2.5″x16″	26-1/4″	42-1/4″			32
TWCL30-2518		2.5″x18″	28-1/4″	46-1/4″			34
TWCL30-2520		2.5″x20″	30-1/4″	50-1/4″			36
TWCL30-2524		2.5″x24″	34-1/4″	58-1/4″			40
TWCL30-2528		2.5″x28″	38-1/4″	66-1/4″			45
TWCL30-2530		2.5″x30″	40-1/4″	70-1/4″			47
TWCL30-2532		2.5″x32″	42-1/4″	74-1/4″			49
TWCL30-2534		2.5″x34″	44-1/4″	78-1/4″			52
TWCL30-2536		2.5″x36″	46-1/4″	82-1/4″			54
TWCL30-2540		2.5″x40″	50-1/4″	90-1/4″			58
TWCL30-2548		2.5″x48″	58-1/4″	106-1/4″			67
TWCL30-3004	1-1/2″	3″x4″	14-1/4″	18-1/4″	1/2NPT	1″	22
TWCL30-3006		3″x6″	16-1/4″	22-1/4″			24
TWCL30-3008		3″x8″	18-1/4″	26-1/4″			27
TWCL30-3010		3″x10″	20-1/4″	30-1/4″			29
TWCL30-3012		3″x12″	22-1/4″	34-1/4″			31
TWCL30-3014		3″x14″	24-1/4″	38-1/4″			34
TWCL30-3016		3″x16″	26-1/4″	42-1/4″			36
TWCL30-3018		3″x18″	28-1/4″	46-1/4″			39
TWCL30-3020		3″x20″	30-1/4″	50-1/4″			41
TWCL30-3024		3″x24″	34-1/4″	58-1/4″			46
TWCL30-3028		3″x28″	38-1/4″	66-1/4″			51
TWCL30-3030		3″x30″	40-1/4″	70-1/4″			53
TWCL30-3032		3″x32″	42-1/4″	74-1/4″			56
TWCL30-3034		3″x34″	44-1/4″	78-1/4″			58
TWCL30-3036		3″x36″	46-1/4″	82-1/4″			61
TWCL30-3040		3″x40″	50-1/4″	90-1/4″			66
TWCL30-3048		3″x48″	58-1/4″	106-1/4″			75
TWCL30-3504	1-3/4″	3.5″x4″	14-1/4″	18-1/4″	1/2 N PT	1″	27
TWCL30-3506		3.5″x6″	16-1/4″	22-1/4″			30
TWCL30-3508		3.5″x8″	18-1/4″	26-1/4″			35
TWCL30-3510		3.5″x10″	20-1/4″	30-1/4″			36
TWCL30-3512		3.5″x12″	22-1/4″	34-1/4″			39
TWCL30-3514		3.5″x14″	24-1/4″	38-1/4″			42
TWCL30-3516		3.5″x16″	26-1/4″	42-1/4″			46
TWCL30-3518		3.5″x18″	28-1/4″	46-1/4″			49
TWCL30-3520		3.5″x20″	30-1/4″	50-1/4″			52
TWCL30-3524		3.5″x24″	34-1/4″	58-1/4″			58
TWCL30-3528		3.5″x28″	38-1/4″	66-1/4″			64
TWCL30-3530		3.5″x30″	40-1/4″	70-1/4″			67
TWCL30-3532		3.5″x32″	42-1/4″	74-1/4″			70
TWCL30-3534		3.5″x34″	44-1/4″	78-1/4″			73
TWCL30-3536		3.5″x36″	46-1/4″	82-1/4″			76
TWCL30-3540		3.5″x40″	50-1/4″	90-1/4″			82
TWCL30-3548		3.5″x48″	58-1/4″	106-1/4″			94
TWCL30-4004	2″	4.0″x4″	14-1/4″	18-1/4″	1/2NPT	1″	33
TWCL30-4006		4.0″x6″	16-1/4″	22-1/4″			37
TWCL30-4008		4.0″x8″	18-1/4″	26-1/4″			42
TWCL30-4010		4.0″x10″	20-1/4″	30-1/4″			44
TWCL30-4012		4.0″x12″	22-1/4″	34-1/4″			48
TWCL30-4014		4.0″x14″	24-1/4″	38-1/4″			52
TWCL30-4016		4.0″x16″	26-1/4″	42-1/4″			55
TWCL30-4018		4.0″x18″	28-1/4″	46-1/4″			59
TWCL30-4020		4.0″x20″	30-1/4″	50-1/4″			63
TWCL30-4024		4.0″x24″	34-1/4″	58-1/4″			70
TWCL30-4028		4.0″x28″	38-1/4″	66-1/4″			77
TWCL30-4030		4.0″x30″	40-1/4″	70-1/4″			81
TWCL30-4032		4.0″x32″	42-1/4″	74-1/4″			85
TWCL30-4034		4.0″x34″	44-1/4″	78-1/4″			89
TWCL30-4036		4.0″x36″	46-1/4″	82-1/4″			92
TWCL30-4040		4.0″x40″	50-1/4″	90-1/4″			100
TWCL30-4048		4.0″x48”	58-1/4″	106-1/4″			114
TWCL30-5004	2-1/2″	5.0″x4″	16-1/4″	20-1/4″	1/2NPT	1″	64
TWCL30-5006		5.0″x6″	18-1/4″	24-1/4″			69
TWCL30-5008		5.0″x8″	20-1/4″	28-1/4″			74
TWCL30-5010		5.0″x10″	22-1/4″	32-1/4″			79
TWCL30-5012		5.0″x12″	24-1/4″	36-1/4″			84
TWCL30-5014		5.0″x14″	26-1/4″	40-1/4″			89
TWCL30-5016		5.0″x16″	28-1/4″	44-1/4″			95
TWCL30-5018		5.0″x18″	30-1/4″	48-1/4″			100
TWCL30-5020		5.0Bx20″	32-1/4″	52-1/4″			105
TWCL30-5024		5.0″x24″	36-1/4″	60-1/4″			115
TWCL30-5028		5.0″x28″	40-1/4″	68-1/4″			125
TWCL30-5030		5.0″x30″	42-1/4″	72-1/4″			130
TWCL30-5032		5.0″x32″	44-1/4″	76-1/4″			136
TWCL30-5034		5.0″x34″	46-1/4″	80-1/4″			141
TWCL30-5036		5.0″x36″	48-1/4″	84-1/4″			146
TWCL30-5040		5.0″x40″	52-1/4″	92-1/4″			156
TWCL30-5048		5.0″x48″	60-1/4″	108-1/4″			177
