Custom Hydraulic Cylinder Manufacturing: Design, Engineering & After-Sales Support
From custom cylinder engineering and 3D modeling to after-sales support, full material traceability, and a 1-year warranty, Maxili Hydraulics delivers end-to-end hydraulic solutions — backed by 20+ years of expertise and ISO 9001 & CE certified quality.
Technical & Engineering Support
At Maxili Hydraulics, we bring over 20 years of expertise in designing and manufacturing high-performance hydraulic cylinders and custom fluid power solutions for OEM customers worldwide. We specialize in engineering durable, high-pressure, and compact hydraulic solutions tailored to demanding applications across construction, agriculture, waste management, and industrial equipment.
Technical Services We Offer:
Custom Hydraulic Cylinder & System Design

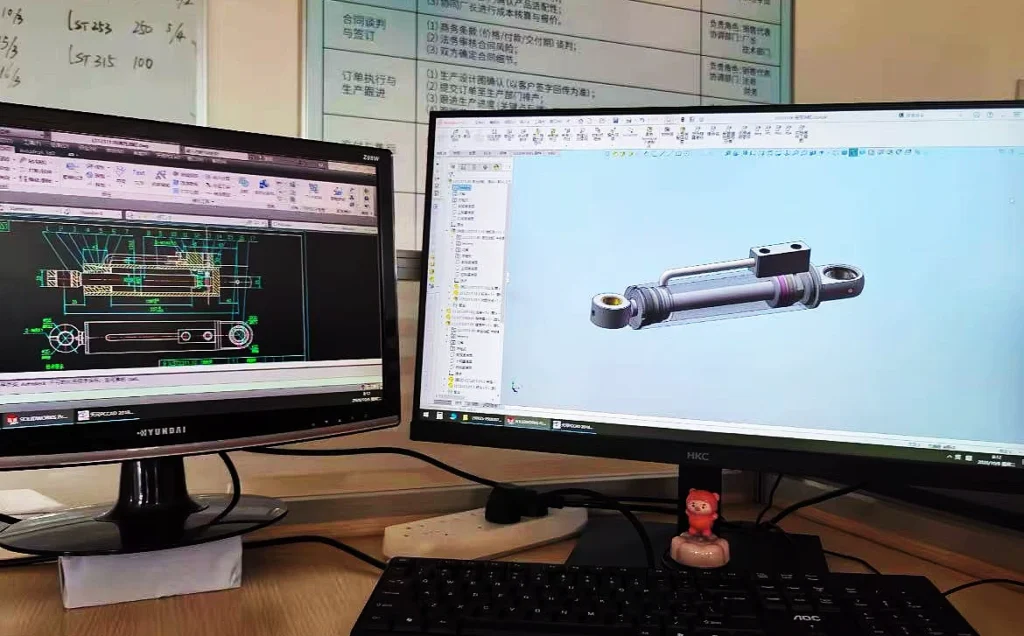

2D Drawings & 3D CAD Modeling
Finite Element Analysis (FEA)
Hydraulic System Consultation:
On-Site Technical & Integration Guidance

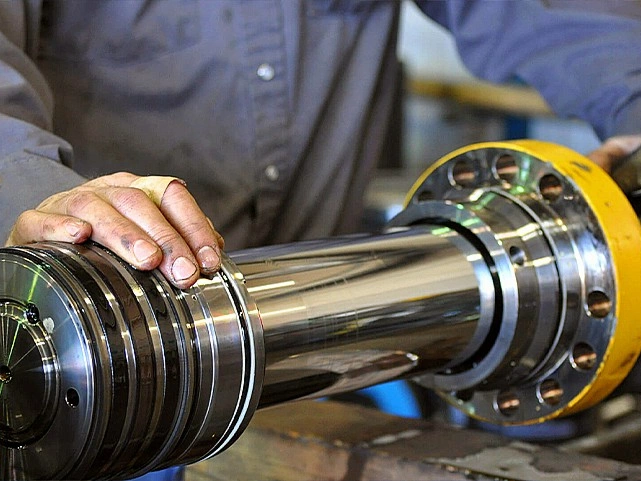

After-Sales Service & Traceability
Service Beyond the Sale
As a trusted international hydraulic cylinder manufacturer, our commitment to you extends far beyond order delivery. We understand that equipment downtime directly impacts your operational productivity.
Fast Spare Parts Supply: We maintain complete component specs to supply replacement seal kits, rod assemblies, and spare parts worldwide as quickly as possible—even years after your original purchase.
Rapid Response Support: In the event of an operational issue, our engineering team provides rapid diagnostic support, remote troubleshooting, and on-site engineering assistance if required.
100% Quality & Material Traceability
At Maxili Hydraulics, total quality control begins with raw material sourcing. Every cylinder produced features complete material and manufacturing traceability:
Raw Material Heat Code Tracking: Full certification for steel tubes, forged rod stock, and cast components.
Production & Inspection Logs: Documented records from CNC machining, welding, and heat treatment to final assembly.
Individual Serialization: Stamped serial numbers on each cylinder body for lifetime maintenance and warranty tracking.
Our Warranty Commitment
Maxili Hydraulics stands behind the craftsmanship and durability of every product we supply.
Standard Warranty: We offer a 1-year standard warranty on all hydraulic cylinders and power units against defects in materials and workmanship.
Extended Warranty Options: Longer warranty coverage can be customized and provided upon request, depending on specific product configurations, component selections (e.g., premium seals, special rod coatings), and application environment.
Streamlined Warranty Claim Process
Issue Report: Provide photos, video clips, or operational details of the cylinder in question.
Technical Evaluation: Our engineering team conducts a swift assessment to confirm the root cause.
Resolution & Replacement: For verified manufacturing or material defects within the warranty period, Maxili Hydraulics will promptly provide free repairs or dispatch brand-new replacement cylinders with freight costs fully covered by us.
(Note: Warranty coverage excludes normal wear-and-tear, operational misuse, unauthorized modifications, or improper installation outside designed parameters.)

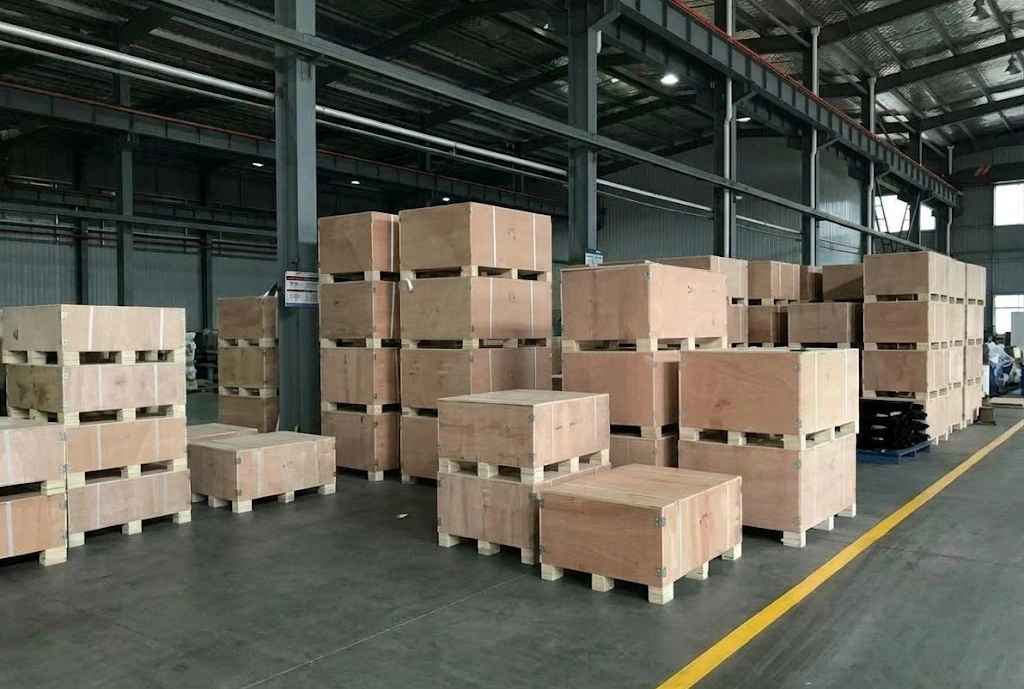

Shipping & Packaging
Export-Grade Packaging Solutions:
- Standard Hydraulic Cylinders:
- Coated with anti-rust oil.
- Wrapped in protective VCI plastic film to prevent moisture and corrosion.
- Packed into sturdy wooden crates for safe sea and air transport.
- Large / Heavy-Duty Cylinders:
- Wrapped with multi-layer EPE pearl cotton padding for impact protection.
- Secured inside heavy-duty steel frame enclosures.
- Customized Packaging: Tailored packaging, barcoding, and container loading strategies available upon request to meet your warehouse and handling requirements.
Frequently Asked Questions
What types of hydraulic cylinders can Maxili Hydraulics produce?

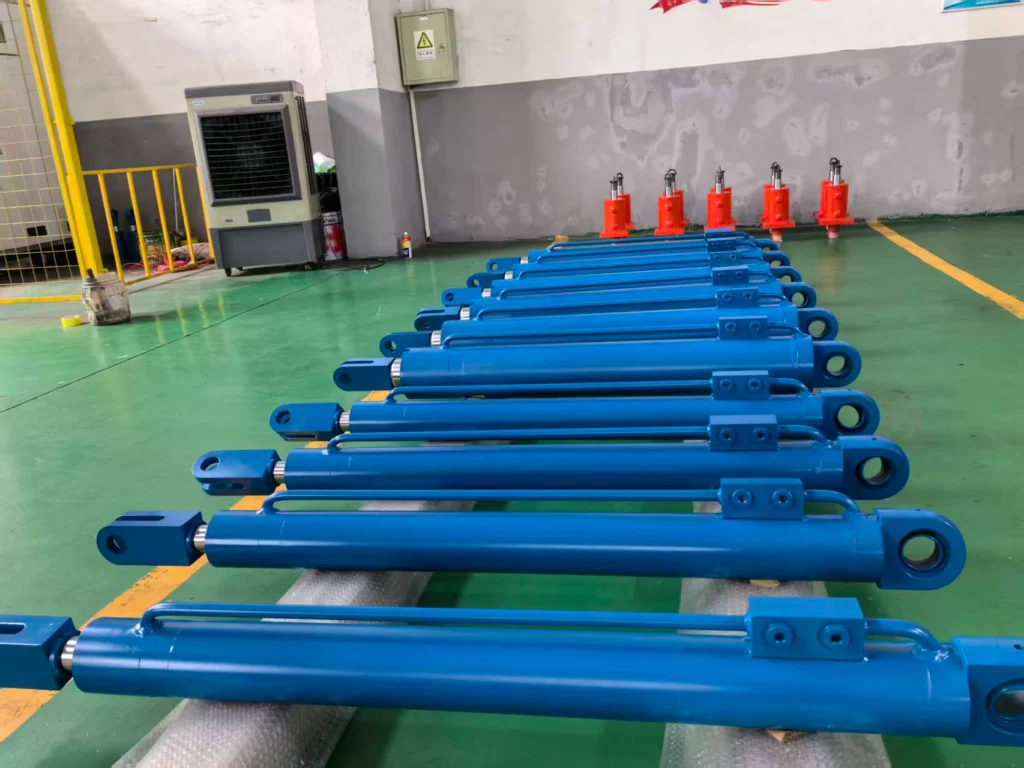

We design and manufacture a full spectrum of hydraulic cylinders, including welded cylinders, tie-rod cylinders, single-acting and double-acting telescopic cylinders, large-bore heavy-duty cylinders, and long-stroke cylinders with integrated valves or position sensors.
Can Maxili Hydraulics assist with custom cylinder engineering and 3D modeling?
Yes. Our engineering team provides full technical collaboration—from initial hydraulic circuit consultation and FEA stress analysis to generating precise 2D drawings and 3D CAD models (STEP/IGES) for seamless integration into your machinery.
How do you handle spare parts and long-term after-sales support?
Every cylinder is fully traceable through our quality database. This allows us to quickly identify your exact build specifications and dispatch replacement seal kits or internal components worldwide, even years after installation.
What testing procedures do your cylinders undergo before leaving the factory?
100% of our hydraulic cylinders undergo rigorous automated test-bench inspection prior to packaging. This includes proof pressure testing (1.5x working pressure), internal/external leakage monitoring, stroke actuation checks, and full dimensional verification.
What is the lead time for the sample order and batch order?
Custom sample development typically takes 25 to 35 days. For batch volume production, lead times range from 30 to 45 days, depending on material availability, machining complexity, and order quantity.
