TR Tie Rod Hydraulic Cylinder

The TR Series Tie Rod Hydraulic Cylinder is built to industry-standard dimensions, making it an ideal drop-in replacement or OEM solution for agricultural machinery, light construction tools, and industrial equipment.

Designed with high-tensile steel tie rods, precision-honed barrels, and chrome-plated rods, our tie rod cylinders deliver dependable double-acting performance, outstanding pressure holding, and easy field maintenance.

Key Features & Advantages

  • High-Strength Construction: Made with heavy-duty 45# steel / ductile iron end caps and high-tensile steel tie rods to prevent stretching under peak loading.

  • Superior Sealing System: Equipped with premium Hallite / NOK seal kits for leak-free operation, low friction, and long service life.

  • Precision Chrome-Plated Rod: Induction-hardened and hard-chrome plated piston rod resists corrosion, pitting, and mechanical impact.

  • Easy Maintenance: Tie-rod assembly allows quick disassembly for seal replacement and field repairs without special machinery.

  • Versatile Mounting: Standard clevis ends with steel pins and clips ensure seamless mounting and high compatibility across equipment brands.

Technical Specifications

ParameterSpecification / Range
Cylinder TypeDouble-Acting Tie Rod Hydraulic Cylinder
Bore Size1.5″ to 5.0″ (Custom sizes available)
Stroke Range4″ to 48″ (or per customer requirement)
Working Pressure2500 PSI / 3000 PSI (Optional)
Piston RodHigh-tensile 45# steel, Hard Chrome Plated (20–30 microns)
Tube/BarrelPrecision honed steel tube
Mounting StyleClevis with pins and clips (Standard) / Custom mounts available
Port TypeNPT, SAE O-Ring Boss (ORB), or BSPP
SealsHallite / NOK / Premium Polyurethane Seals
Color/FinishDurable black/red industrial paint (Custom color on request)

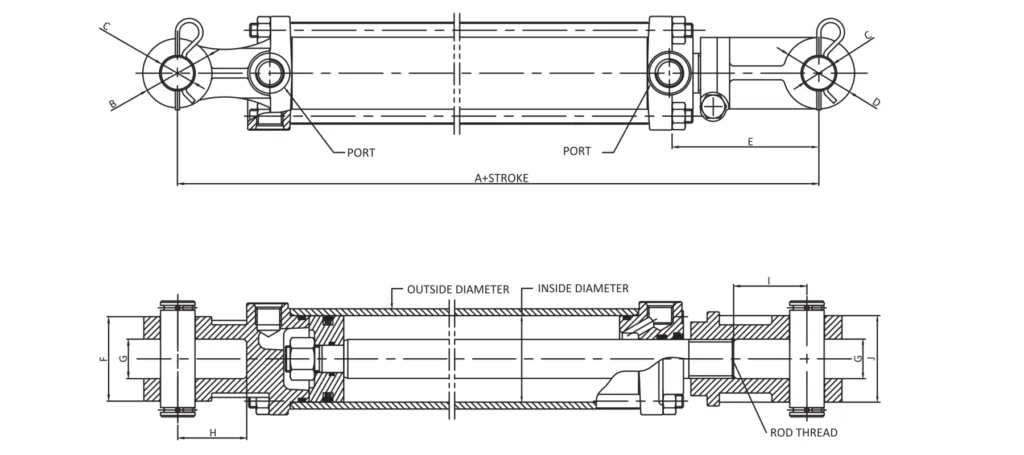

TR Tie Rod Hydraulic Cylinder Drawing

tr drawing

TR Tie Rod Hydraulic Cylinder Dimensional Data

PART NUMBERINSIDE DIAMETEROUTSIDE DIAMETERABCDEFGHIJROD THREADPORT
TR20-2.00″2.37″10.25″2.00″1.01″2.00″3.75″2.25″1.12″2.06″2.12″2.62″1.125-12 UNF3/8-NPT
TR25-2.50″2.87″10.25″2.00″1.01″2.25″3.75″2.25″1.12″2.06″2.12″2.62″1.125-12 UNF3/8-NPT
TR30-3.00″3.37″10.25″2.00″1.01″2.25″3.75″2.25″1.12″2.06″2.12″2.62″1.250-12 UNF1/2-NPT
TR35-3.50″3.87″10.25″2.00″1.01″2.25″3.62″2.50″1.12″2.06″2.12″2.62″1.250-12 UNF1/2-NPT
TR40-4.00″4.37″10.25″2.25″1.01″2.25″3.56″2.62″1.12″2.06″2.12″2.62″1.250-12 UNF1/2-NPT
TR50-5.00″5.37″12.25″2.87″1.26″2.75″4.18″3.50″1.12″2.25″2.12″3.31″1.500-12 UNF1/2-NPT

TR Tie Rod Hydraulic Cylinder Model Data

Model NumberBoreRodStrokeRetractedExtendedPinPort
Weight (lbs)
TR20042″1-1/8″4″14-1/4″18-1/4″1″3/8″ NPT16.8
TR20062″1-1/8″6″16-1/4″22-1/4″1″3/8″ NPT18.4
TR20082″1-1/8″8″18-1/4″26-1/4″1″3/8″ NPT20
TR2008-ASAE2″1-1/8″8″20-1/4″28-1/4″1″3/8″ NPT20.5
TR20102″1-1/8″10″20-1/4″30-1/4″1″3/8″ NPT21.5
TR20122″1-1/8″12″22-1/4″34-1/4″1″3/8″ NPT23.1
TR20142″1-1/8″14″24-1/4″38-1/4″1″3/8″ NPT24.7
TR20162″1-1/8″16″26-1/4″42-1/4″1″3/8″ NPT26.3
TR20182″1-1/8″18″28-1/4″46-1/4″1″3/8″ NPT27.9
TR20202″1-1/8″20″30-1/4″50-1/4″1″3/8″ NPT29.5
TR20242″1-1/8″24″34-1/4″58-1/4″1″3/8″ NPT32.7
TR20302″1-1/8″30″40-1/4″70-1/4″1″3/8″ NPT37.5
TR20362″1-1/8″36″46-1/4″82-1/4″1″3/8″ NPT42.3
TR20482″1-1/8″48″58-1/4″106-1/4″1″3/8″ NPT51.7
TR25042.5″1-1/8″4″14-1/4″18-1/4″1″3/8″ NPT17
TR25062.5″1-1/8″6″16-1/4″22-1/4″1″3/8″ NPT20
TR25082.5″1-1/8″8″18-1/4″26-1/4″1″3/8″ NPT22
TR2508-ASAE2.5″1-1/8″8″20-1/4″28-1/4″1″3/8″ NPT22.5
TR25102.5″1-1/8″10″20-1/4″30-1/4″1″3/8″ NPT24
TR25122.5″1-1/8″12″22-1/4″34-1/4″1″3/8″ NPT26
TR25142.5″1-1/8″14″24-1/4″38-1/4″1″3/8″ NPT28
TR25162.5″1-1/8″16″26-1/4″42-1/4″1″3/8″ NPT30
TR25182.5″1-1/8″18″28-1/4″46-1/4″1″3/8″ NPT32
TR25202.5″1-1/8″20″30-1/4″50-1/4″1″3/8″ NPT34
TR25242.5″1-1/8″24″34-1/4″58-1/4″1″3/8″ NPT38
TR25302.5″1-1/8″30″40-1/4″70-1/4″1″3/8″ NPT44
TR25362.5″1-1/8″36″46-1/4″82-1/4″1″3/8″ NPT50
TR25482.5″1-1/8″48″58-1/4″106-1/4″1″3/8″ NPT62
TR30043″1-1/4″4″14-1/4″18-1/4″1″1/2″ NPT22.1
TR30063″1-1/4″6″16-1/4″22-1/4″1″1/2″ NPT24
TR30083″1-1/4″8″18-1/4″26-1/4″1″1/2″ NPT26
TR3008-ASAE3″1-1/4″8″20-1/4″28-1/4″1″1/2″ NPT27
TR30103″1-1/4″10″20-1/4″30-1/4″1″1/2″ NPT29
TR30123″1-1/4″12″22-1/4″34-1/4″1″1/2″ NPT31
TR30143″1-1/4″14″24-1/4″38-1/4″1″1/2″ NPT33
TR30163″1-1/4″16″26-1/4″42-1/4″1″1/2″ NPT35
TR30183″1-1/4″18″28-1/4″46-1/4″1″1/2″ NPT38
TR30203″1-1/4″20″30-1/4″50-1/4″1″1/2″ NPT41
TR30243″1-1/4″24″34-1/4″58-1/4″1″1/2″ NPT46
TR30303″1-1/4″30″40-1/4″70-1/4″1″1/2″ NPT54
TR30363″1-1/4″36″46-1/4″82-1/4″1″1/2″ NPT62
TR30483″1-1/4″48″58-1/4″106-1/4″1″1/2″ NPT78
TR35043.5″1-1/4″4″14-1/4″18-1/4″1″1/2″ NPT28
TR35063.5″1-1/4″6″16-1/4″22-1/4″1″1/2″ NPT31
TR35083.5″1-1/4″8″18-1/4″26-1/4″1″1/2″ NPT34
TR3508-ASAE3.5″1-1/4″8″20-1/4″28-1/4″1″1/2″ NPT35
TR35103.5″1-1/4″10″20-1/4″30-1/4″1″1/2″ NPT37
TR35123.5″1-1/4″12″22-1/4″34-1/4″1″1/2″ NPT40
TR35143.5″1-1/4″14″24-1/4″38-1/4″1″1/2″ NPT43
TR35163.5″1-1/4″16″26-1/4″42-1/4″1″1/2″ NPT46
TR35183.5″1-1/4″18″28-1/4″46-1/4″1″1/2″ NPT49
TR35203.5″1-1/4″20″30-1/4″50-1/4″1″1/2″ NPT52
TR35243.5″1-1/4″24″34-1/4″58-1/4″1″1/2″ NPT58
TR35303.5″1-1/4″30″40-1/4″70-1/4″1″1/2″ NPT68
TR35363.5″1-1/4″36″46-1/4″82-1/4″1″1/2″ NPT78
TR35483.5″1-1/4″48″58-1/4″106-1/4″1″1/2″ NPT98
TR40044″1-1/4″4″14-1/4″18-1/4″1″1/2″ NPT35
TR40064″1-1/4″6″16-1/4″22-1/4″1″1/2″ NPT38
TR40084″1-1/4″8″18-1/4″26-1/4″1″1/2″ NPT41
TR4008-ASAE4″1-1/4″8″20-1/4″28-1/4″1″1/2″ NPT42
TR40104″1-1/4″10″20-1/4″30-1/4″1″1/2″ NPT45
TR40124″1-1/4″12″22-1/4″34-1/4″1″1/2″ NPT49
TR40144″1-1/4″14″24-1/4″38-1/4″1″1/2″ NPT53
TR40164″1-1/4″16″26-1/4″42-1/4″1″1/2″ NPT57
TR40184″1-1/4″18″28-1/4″46-1/4″1″1/2″ NPT61
TR40204″1-1/4″20″30-1/4″50-1/4″1″1/2″ NPT65
TR40244″1-1/4″24″34-1/4″58-1/4″1″1/2″ NPT73
TR40304″1-1/4″30″40-1/4″70-1/4″1″1/2″ NPT85
TR40364″1-1/4″36″46-1/4″82-1/4″1″1/2″ NPT97
TR40484″1-1/4″48″58-1/4″106-1/4″1″1/2″ NPT121
TR50085″1-1/2″8″20-1/4″28-1/4″1-1/4″1/2″ NPT68
TR50105″1-1/2″10″22-1/4″32-1/4″1-1/4″1/2″ NPT73
TR50125″1-1/2″12″24-1/4″36-1/4″1-1/4″1/2″ NPT78
TR50165″1-1/2″16″28-1/4″44-1/4″1-1/4″1/2″ NPT88
TR50205″1-1/2″20″32-1/4″52-1/4″1-1/4″1/2″ NPT98
TR50245″1-1/2″24″36-1/4″60-1/4″1-1/4″1/2″ NPT108
TR50305″1-1/2″30″42-1/4″72-1/4″1-1/4″1/2″ NPT123
TR50365″1-1/2″36″48-1/4″84-1/4″1-1/4″1/2″ NPT138

TR Tie Rod Hydraulic Cylinder Applications

  • Our TR Tie Rod Cylinders are widely utilized in demanding mobile and stationary equipment:

    • Agricultural Machinery: Tractors, tillage equipment, sprayers, harvesters, seeders.

    • Material Handling: Utility trailers, lifts, log splitters, dump trailers.

    • Industrial & Construction: Compact loaders, waste compactors, hydraulic presses.

Customization & OEM Capabilities

  • Need tailored dimensions or unique mounting options? We support custom cylinder engineering:

    • Custom Stroke, Bore, and Rod Diameter Combinations

    • Integrated Valve Block Options (Overcenter Valves / Velocity Fuses)

    • Alternative Seal Materials for High/Low Temperature Environments

    • Custom Paint, Powder Coating, and Private Labeling

Quality Assurance & Factory Testing

  • Every TR Tie Rod Cylinder undergoes rigorous quality testing before leaving our facility:

    1. 100% Pressure & Leak Testing: Tested at 1.5x working pressure.

    2. Dimensional & Alignment Inspection: Ensures perfect stroke accuracy and mounting pin alignment.
