WP Hydraulic Cylinder with Cross Tube Base & Rod Eye
The WP Series Welded Hydraulic Cylinder is high-performance engineered for rugged agricultural, construction, and industrial equipment applications. Designed with a welded cross tube sleeve on the base end and a precision-machined rod eye pin hole on the rod end, this cylinder delivers superior structural durability, compact mounting, and reliable pivot motion under continuous high-pressure operations.
Featuring precision-honed steel tubing and induction-hardened, chrome-plated piston rods, the WP series provides long service life, exceptional seal endurance, and minimal maintenance downtime in harsh environments.
Key Features & Advantages
Cross Tube Base Mount: Heavy-duty welded steel tube sleeve at the base end, equipped with integrated grease fittings (zerks) for effortless lubrication and extended pin wear life.
Precision Rod Eye: Machined rod end pin hole designed for smooth pivot action and direct clevis/pin installation.
Precision Honed Barrel: High-tensile cold-drawn steel tubing, micro-honed to a mirror finish for low friction and extended seal life.
Induction Hardened Piston Rod: High-strength C45/4140 steel rod, ground and hard chrome plated (min. 25-30 microns) to resist corrosion, scratching, and impact damage.
Premium Multi-Stage Sealing System: Equipped with top-tier polyurethane seals (Hallite / NOK) and heavy-duty wiper seals for zero fluid leakage and multi-temperature resistance.
Threaded Ductile Iron Gland: High-strength gland and piston design allows easy servicing while withstanding extreme fatigue loads during high-pressure cycles.
Technical Specifications
Parameter | Standard Specification |
|---|---|
Working Pressure | 3000 PSI Continuous (Max shock pressure up to 4000 PSI) |
Operating Temperature | -30°C to +100°C (-22°F to +212°F) |
Base End Mounting | Welded Cross Tube (Steel Sleeve with Grease Zerk) |
Rod End Mounting | Precision Machined Pin Hole / Rod Eye |
Bore Size Range | 1.5″ – 5.0″(Custom up to 8.0″) |
Stroke Range | 4″ – 48″(Custom strokes available upon request) |
Port Style | NPT Female Thread (SAE ORB option available) |
Piston Rod Treatment | Induction Hardened, Hard Chrome Plated |
Color & Coating | High-durability anti-corrosion finish (Standard Gloss Black / Red or Custom RAL) |

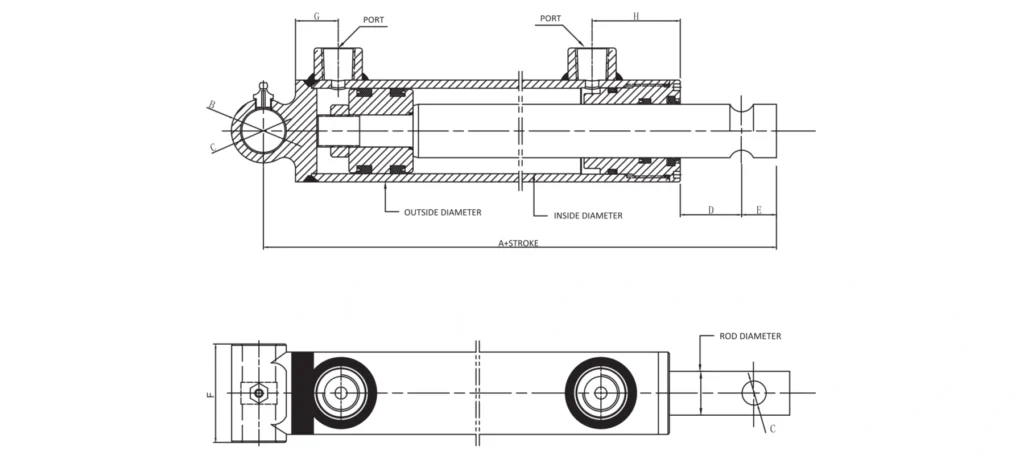

WP Hydraulic Cylinder Drawing
WP Hydraulic Cylinder Dimensional Data
| PART NUMBER | INSIDE DIAMETER | OUTSIDE DIAMETER | A | B | C | D | E | F | G | H | ROD DIAMETER | PORT |
| WP15- | 1.50″ | 2.00″ | 7.00″ | 1.25″ | 0.64″ | 2.43″ | 0.62″ | 2.00″ | 0.81″ | 1.87″ | 1.00″ | SAE#6 |
| WP20- | 2.00″ | 2.50″ | 8.00″ | 1.25″ | 0.76″ | 3.37″ | 0.75″ | 2.50″ | 0.81″ | 1.87″ | 1.25″ | SAE#8 |
| WP25- | 2.50″ | 3.00″ | 8.00″ | 1.25″ | 0.76″ | 3.12″ | 0.75″ | 3.00″ | 0.81″ | 2.06″ | 1.50″ | SAE#8 |
| WP30- | 3.00″ | 3.50″ | 8.00″ | 1.50″ | 1.01″ | 2.56″ | 1.00″ | 3.50″ | 0.81″ | 2.18″ | 1.50″ | SAE#8 |
| WP35- | 3.50″ | 4.00″ | 8.00″ | 1.50″ | 1.01″ | 2.43″ | 1.00″ | 4.00″ | 0.81″ | 2.18″ | 1.75″ | SAE#8 |
| WP40- | 4.00″ | 4.50″ | 9.00″ | 2.00″ | 1.26″ | 2.43″ | 1.25″ | 4.50″ | 0.81 | 2.18″ | 2.00″ | SAE#8 |
WP Hydraulic Cylinder Model Data
| PART NUMBER | BORE | ROD DIAMETER | STROKE | RETRACTED | EXTENDED | PORT SIZE | PIN SIZE | WEIGHT (LBS) |
| WP-1504 | 1.5″ | 1″ | 4″ | 11″ | 15″ | SAE#6 | 5/8″ | 7 |
| WP-1506 | 1.5″ | 1″ | 6″ | 13″ | 19″ | SAE#6 | 5/8″ | 8 |
| WP-1508 | 1.5″ | 1″ | 8″ | 15″ | 23″ | SAE#6 | 5/8″ | 9 |
| WP-1510 | 1.5″ | 1″ | 10″ | 17″ | 27″ | SAE#6 | 5/8″ | 11 |
| WP-1512 | 1.5″ | 1″ | 12″ | 19″ | 31″ | SAE#6 | 5/8″ | 12 |
| WP-1514 | 1.5″ | 1″ | 14″ | 21″ | 35″ | SAE#6 | 5/8″ | 13 |
| WP-1516 | 1.5″ | 1″ | 16″ | 23″ | 39″ | SAE#6 | 5/8″ | 14 |
| WP-2004 | 2″ | 1-1/4″ | 4″ | 12″ | 16″ | SAE#8 | 3/4″ | 10 |
| WP-2006 | 2″ | 1-1/4″ | 6″ | 14″ | 20″ | SAE#8 | 3/4″ | 12 |
| WP-2008 | 2″ | 1-1/4″ | 8″ | 16″ | 24″ | SAE#8 | 3/4″ | 14 |
| WP-2010 | 2″ | 1-1/4″ | 10″ | 18″ | 28″ | SAE#8 | 3/4″ | 16 |
| WP-2012 | 2″ | 1-1/4″ | 12″ | 20″ | 32″ | SAE#8 | 3/4″ | 17 |
| WP-2014 | 2″ | 1-1/4″ | 14″ | 22″ | 36″ | SAE#8 | 3/4″ | 19 |
| WP-2016 | 2″ | 1-1/4″ | 16″ | 24″ | 40″ | SAE#8 | 3/4″ | 21 |
| WP-2018 | 2″ | 1-1/4″ | 18″ | 26″ | 44″ | SAE#8 | 3/4″ | 22 |
| WP-2020 | 2″ | 1-1/4″ | 20″ | 28″ | 48″ | SAE#8 | 3/4″ | 24 |
| WP-2024 | 2″ | 1-1/4″ | 24″ | 32″ | 56″ | SAE#8 | 3/4″ | 27 |
| WP-2028 | 2″ | 1-1/4″ | 28″ | 36″ | 64″ | SAE#8 | 3/4″ | 31 |
| WP-2030 | 2″ | 1-1/4″ | 30″ | 38″ | 68″ | SAE#8 | 3/4″ | 33 |
| WP-2032 | 2″ | 1-1/4″ | 32″ | 40″ | 72″ | SAE#8 | 3/4″ | 34 |
| WP-2036 | 2″ | 1-1/4″ | 36″ | 44″ | 80″ | SAE#8 | 3/4″ | 38 |
| WP-2040 | 2″ | 1-1/4″ | 40″ | 48″ | 88″ | SAE#8 | 3/4″ | 41 |
| WP-2042 | 2″ | 1-1/4″ | 42″ | 50″ | 92″ | SAE#8 | 3/4″ | 43 |
| WP-2048 | 2″ | 1-1/4″ | 48″ | 56″ | 104″ | SAE#8 | 3/4″ | 48 |
| WP-2060 | 2″ | 1-1/4″ | 60″ | 68″ | 128″ | SAE#8 | 3/4″ | 58 |
| WP-2072 | 2″ | 1-1/4″ | 72″ | 80″ | 152″ | SAE#8 | 3/4″ | 68 |
| WP-2504 | 2.5″ | 1-3/8″ | 4″ | 12″ | 16″ | SAE#8 | 3/4″ | 14 |
| WP-2506 | 2.5″ | 1-3/8″ | 6″ | 14″ | 20″ | SAE#8 | 3/4″ | 16 |
| WP-2508 | 2.5″ | 1-3/8″ | 8″ | 16″ | 24″ | SAE#8 | 3/4″ | 18 |
| WP-2510 | 2.5″ | 1-3/8″ | 10″ | 18″ | 28″ | SAE#8 | 3/4″ | 20 |
| WP-2512 | 2.5″ | 1-3/8″ | 12″ | 20″ | 32″ | SAE#8 | 3/4″ | 22 |
| WP-2514 | 2.5″ | 1-3/8″ | 14″ | 22″ | 36″ | SAE#8 | 3/4″ | 24 |
| WP-2516 | 2.5″ | 1-3/8″ | 16″ | 24″ | 40″ | SAE#8 | 3/4″ | 26 |
| WP-2518 | 2.5″ | 1-3/8″ | 18″ | 26″ | 44″ | SAE#8 | 3/4″ | 28 |
| WP-2520 | 2.5″ | 1-3/8″ | 20″ | 28″ | 48″ | SAE#8 | 3/4″ | 30 |
| WP-2524 | 2.5″ | 1-3/8″ | 24″ | 32″ | 56″ | SAE#8 | 3/4″ | 35 |
| WP-2528 | 2.5″ | 1-3/8″ | 28″ | 36″ | 64″ | SAE#8 | 3/4″ | 39 |
| WP-2530 | 2.5″ | 1-3/8″ | 30″ | 38″ | 68″ | SAE#8 | 3/4″ | 41 |
| WP-2532 | 2.5″ | 1-3/8″ | 32″ | 40″ | 72″ | SAE#8 | 3/4″ | 43 |
| WP-2536 | 2.5″ | 1-3/8″ | 36″ | 44″ | 80″ | SAE#8 | 3/4″ | 47 |
| WP-2540 | 2.5″ | 1-3/8″ | 40″ | 48″ | 88″ | SAE#8 | 3/4″ | 51 |
| WP-2542 | 2.5″ | 1-3/8″ | 42″ | 50″ | 92″ | SAE#8 | 3/4″ | 53 |
| WP-2548 | 2.5″ | 1-3/8″ | 48″ | 56″ | 104″ | SAE#8 | 3/4″ | 59 |
| WP-2560 | 2.5″ | 1-3/8″ | 60″ | 68″ | 128″ | SAE#8 | 3/4″ | 72 |
| WP-3004 | 3″ | 1-1/2″ | 4″ | 12″ | 16″ | SAE#8 | 1″ | 19 |
| WP-3006 | 3″ | 1-1/2″ | 6″ | 14″ | 20″ | SAE#8 | 1″ | 21 |
| WP-3008 | 3″ | 1-1/2″ | 8″ | 16″ | 24″ | SAE#8 | 1″ | 24 |
| WP-3010 | 3″ | 1-1/2″ | 10″ | 18″ | 28″ | SAE#8 | 1″ | 26 |
| WP-3012 | 3″ | 1-1/2″ | 12″ | 20″ | 32″ | SAE#8 | 1″ | 28 |
| WP-3014 | 3″ | 1-1/2″ | 14″ | 22″ | 36″ | SAE#8 | 1″ | 31 |
| WP-3016 | 3″ | 1-1/2″ | 16″ | 24″ | 40″ | SAE#8 | 1″ | 33 |
| WP-3018 | 3″ | 1-1/2″ | 18″ | 26″ | 44″ | SAE#8 | 1″ | 36 |
| WP-3020 | 3″ | 1-1/2″ | 20″ | 28″ | 48″ | SAE#8 | 1″ | 38 |
| WP-3024 | 3″ | 1-1/2″ | 24″ | 32″ | 56″ | SAE#8 | 1″ | 43 |
| WP-3028 | 3″ | 1-1/2″ | 28″ | 36″ | 64″ | SAE#8 | 1″ | 48 |
| WP-3030 | 3″ | 1-1/2″ | 30″ | 38″ | 68″ | SAE#8 | 1″ | 51 |
| WP-3032 | 3″ | 1-1/2″ | 32″ | 40″ | 72″ | SAE#8 | 1″ | 53 |
| WP-3036 | 3″ | 1-1/2″ | 36″ | 44″ | 80″ | SAE#8 | 1″ | 58 |
| WP-3040 | 3″ | 1-1/2″ | 40″ | 48″ | 88″ | SAE#8 | 1″ | 63 |
| WP-3042 | 3″ | 1-1/2″ | 42″ | 50″ | 92″ | SAE#8 | 1″ | 65 |
| WP-3048 | 3″ | 1-1/2″ | 48″ | 56″ | 104″ | SAE#8 | 1″ | 73 |
| WP-3060 | 3″ | 1-1/2″ | 60″ | 68″ | 128″ | SAE#8 | 1″ | 87 |
| WP-3504 | 3.5″ | 1-3/4″ | 4″ | 12″ | 16″ | SAE#8 | 1″ | 24 |
| WP-3506 | 3.5″ | 1-3/4″ | 6″ | 14″ | 20″ | SAE#8 | 1″ | 27 |
| WP-3508 | 3.5″ | 1-3/4″ | 8″ | 16″ | 24″ | SAE#8 | 1″ | 30 |
| WP-3510 | 3.5″ | 1-3/4″ | 10″ | 18″ | 28″ | SAE#8 | 1″ | 33 |
| WP-3512 | 3.5″ | 1-3/4″ | 12″ | 20″ | 32″ | SAE#8 | 1″ | 36 |
| WP-3514 | 3.5″ | 1-3/4″ | 14″ | 22″ | 36″ | SAE#8 | 1″ | 39 |
| WP-3516 | 3.5″ | 1-3/4″ | 16″ | 24″ | 40″ | SAE#8 | 1″ | 42 |
| WP-3518 | 3.5″ | 1-3/4″ | 18″ | 26″ | 44″ | SAE#8 | 1″ | 45 |
| WP-3520 | 3.5″ | 1-3/4″ | 20″ | 28″ | 48″ | SAE#8 | 1″ | 48 |
| WP-3524 | 3.5″ | 1-3/4″ | 24″ | 32″ | 56″ | SAE#8 | 1″ | 54 |
| WP-3528 | 3.5″ | 1-3/4″ | 28″ | 36″ | 64″ | SAE#8 | 1″ | 60 |
| WP-3530 | 3.5″ | 1-3/4″ | 30″ | 38″ | 68″ | SAE#8 | 1″ | 63 |
| WP-3532 | 3.5″ | 1-3/4″ | 32″ | 40″ | 72″ | SAE#8 | 1″ | 66 |
| WP-3536 | 3.5″ | 1-3/4″ | 36″ | 44″ | 80″ | SAE#8 | 1″ | 72 |
| WP-3540 | 3.5″ | 1-3/4″ | 40″ | 48″ | 88″ | SAE#8 | 1″ | 79 |
| WP-3542 | 3.5″ | 1-3/4″ | 42″ | 50″ | 92″ | SAE#8 | 1″ | 82 |
| WP-3548 | 3.5″ | 1-3/4″ | 48″ | 56″ | 104″ | SAE#8 | 1″ | 91 |
| WP-3560 | 3.5″ | 1-3/4″ | 60″ | 68″ | 128″ | SAE#8 | 1″ | 109 |
| WP-4004 | 4.0″ | 2″ | 4″ | 13″ | 17″ | SAE#8 | 1-1/4″ | 33 |
| WP-4006 | 4.0″ | 2″ | 6″ | 15″ | 21″ | SAE#8 | 1-1/4″ | 36 |
| WP-4008 | 4.0″ | 2″ | 8″ | 17″ | 25″ | SAE#8 | 1-1/4″ | 40 |
| WP-4010 | 4.0″ | 2″ | 10″ | 19″ | 29″ | SAE#8 | 1-1/4″ | 44 |
| WP-4012 | 4.0″ | 2″ | 12″ | 21″ | 33″ | SAE#8 | 1-1/4″ | 47 |
| WP-4014 | 4.0″ | 2″ | 14″ | 23″ | 37″ | SAE#8 | 1-1/4″ | 51 |
| WP-4016 | 4.0″ | 2″ | 16″ | 25″ | 41″ | SAE#8 | 1-1/4″ | 55 |
| WP-4018 | 4.0″ | 2″ | 18″ | 27″ | 45″ | SAE#8 | 1-1/4″ | 58 |
| WP-4020 | 4.0″ | 2″ | 20″ | 29″ | 49″ | SAE#8 | 1-1/4″ | 62 |
| WP-4024 | 4.0″ | 2″ | 24″ | 33″ | 57″ | SAE#8 | 1-1/4″ | 70 |
| WP-4028 | 4.0″ | 2″ | 28″ | 37″ | 65″ | SAE#8 | 1-1/4″ | 77 |
| WP-4030 | 4.0″ | 2″ | 30″ | 39″ | 69″ | SAE#8 | 1-1/4″ | 81 |
| WP-4032 | 4.0″ | 2″ | 32″ | 41″ | 73″ | SAE#8 | 1-1/4″ | 84 |
| WP-4036 | 4.0″ | 2″ | 36″ | 45″ | 81″ | SAE#8 | 1-1/4″ | 92 |
| WP-4040 | 4.0″ | 2″ | 40″ | 49″ | 89″ | SAE#8 | 1-1/4″ | 99 |
| WP-4042 | 4.0″ | 2″ | 42″ | 51″ | 93″ | SAE#8 | 1-1/4″ | 103 |
| WP-4048 | 4.0″ | 2″ | 48″ | 57″ | 105″ | SAE#8 | 1-1/4″ | 114 |
| WP-4060 | 4.0″ | 2″ | 60″ | 69″ | 129″ | SAE#8 | 1-1/4″ | 136 |
WP Hydraulic Cylinder Applications
Agricultural Machinery: Tractor loader attachments, tillage tools, seeders, and harvesters.
Earthmoving & Construction: Skid steer attachments, mini excavators, and backhoes.
Transportation & Trailers: Utility trailers, hydraulic tilt beds, tow trucks, and dump bodies.
Waste & Material Handling: Refuse equipment, waste compactors, and hydraulic lift tables.
Customization & OEM Capabilities
We offer comprehensive OEM/ODM manufacturing services tailored to meet your exact mechanical drawings, hydraulic performance parameters, and branding requirements:
Custom Dimensions: Custom stroke lengths, bore dimensions, and piston rod diameters.
Mounting Options: Customized cross-tube sleeve widths, spherical bearings, or clevis mounts.
Port Configurations: SAE ORB (O-Ring Boss), BSPP, NPT, or integrated flange ports rotated to specified angles.
Integrated Valve Blocks: Counterbalance valves, pilot-operated check valves, or velocity fuses integrated directly into the cylinder barrel.
Specialized Seals: High-temperature (Viton), low-temperature, or low-friction seal options (Hallite, NOK, SKF).
Private Labeling & Packaging: Custom color paint options, laser logo engraving, individual box packaging, and barcode labeling.
Quality Assurance & Factory Testing
Every WP Series Cylinder undergoes stringent quality checks to guarantee field performance and long working life:
100% Full-Cycle Hydraulic Testing: Static and dynamic pressure testing on every unit to verify sealing integrity and zero internal drift.
Dimensional & Surface Inspection: Precision coordinate testing for tight tolerances, chrome plating thickness check (20–30μm), and surface roughness measurement.
Cleanroom Assembly: Assembled in a controlled dust-free environment with fluid flushing to prevent hydraulic system contamination.
Full Traceability: Raw material certification, heat treatment records, and detailed inspection reports available for OEM orders.
